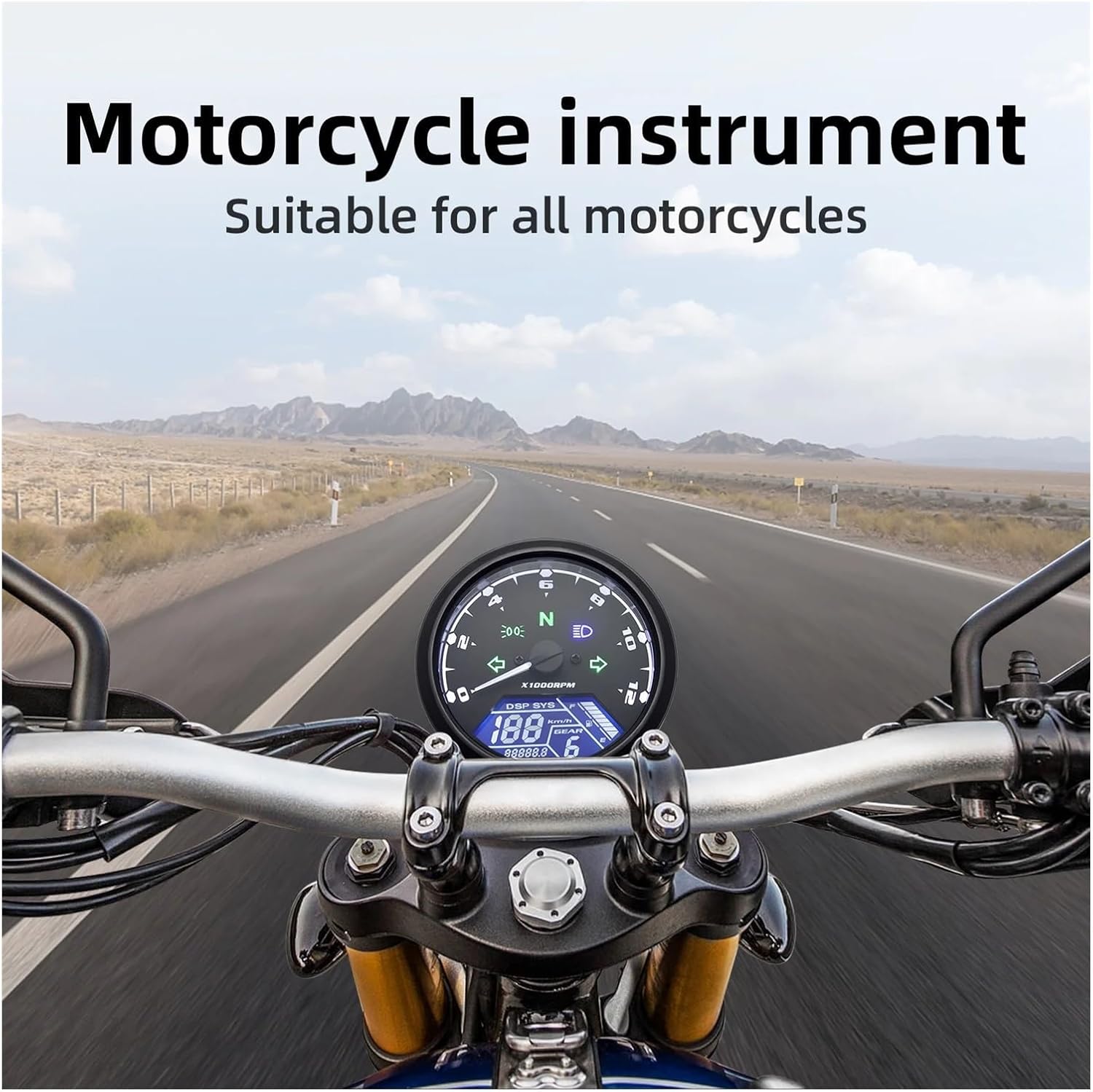

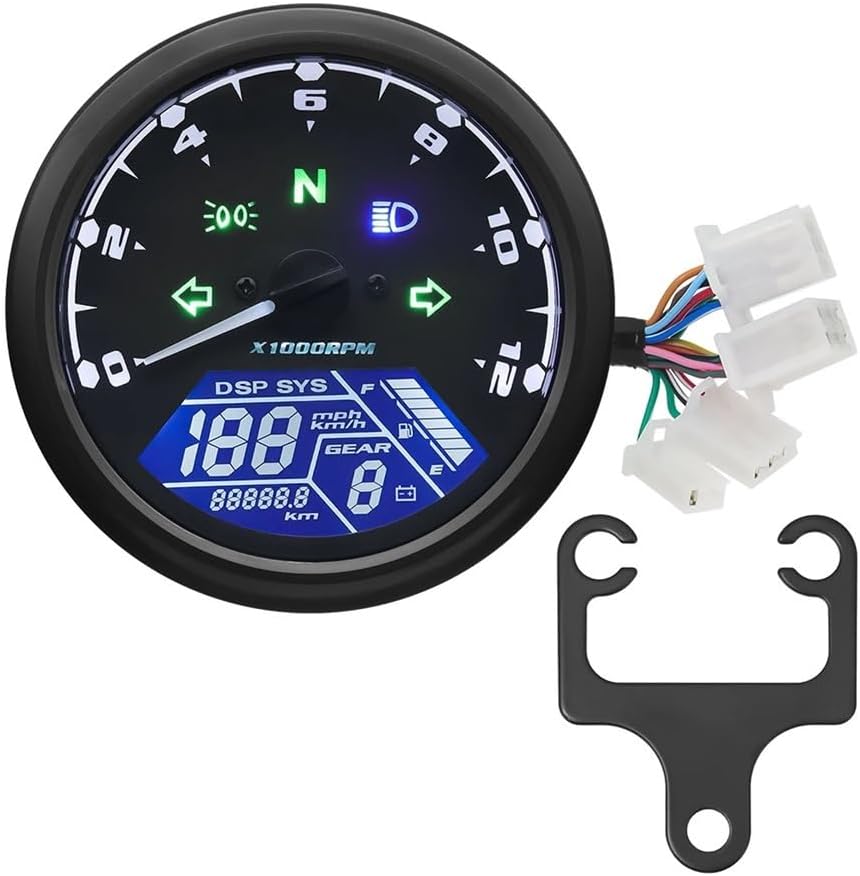

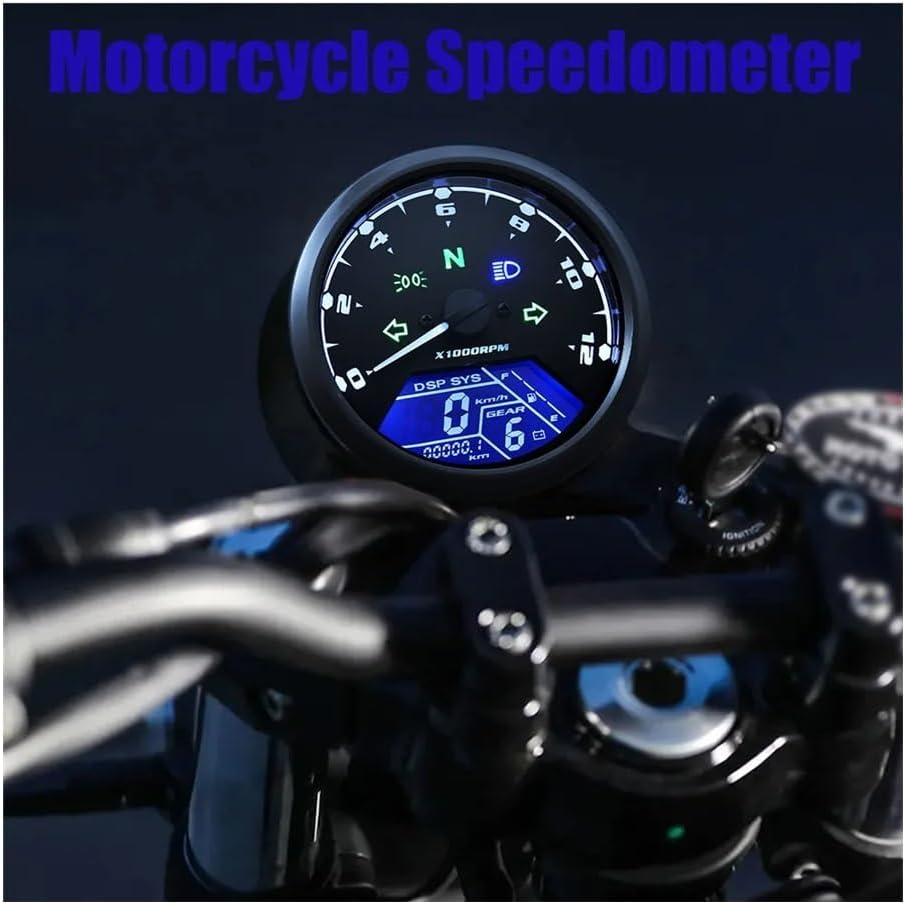

Motorcycle Speedometer Gauge Universal Motorcycle Instrument 12000RMP Tachometer Odometer 1-4 Cylinders Motorbike Gauge Moto Digital Dash

Universal Motorcycle Instrument 12000RMP Tachometer Odometer Tachometer 1-4 Cylinders Motorbike Gauge Moto Digital DashDescription:- Working voltage:8-18V- Rated voltage:DC 12V- Working temperature:20 - +70 Celsius- Storage temperature:-30 - +80 Celsius- Digital display speed range:0-199km/h- Needle display rpm range:0-12000rpm- Digital display odo distance range:0-99999.9km- Gear indicator:1-6- Backlight:Blue- Installation diameter:9cm- Height:5.3cm- Cable Length:12cmWiring Instructions (from left to right) Color:Light Blue : Right signalBlue White : Fuel levelWhite Brown : Position lampBlack : SwitchBlue : High beamOrange : Left signalGreen : PowerYellow black : Pulsed coil(Engine speed)Color : Green/Red Blue/Red Green/Black Yellow/Red Yellow/WhiteFunction : Gear N Gear 1 Gear 2 Gear 3 Gear 4 Gear 5Color : Green/WhiteFunction : Gear 6Color : Red/White Black/White GreenFunction : Speed sensor+ Speed sensor signal Speed sensorPackage:Package A includes:1X TachometerPackage B includes:1X Tachometer1X SensorPackage C includes:1X Tachometer1X HolderPackage D includes:1X Tachometer1X Holder1X SensorPackage E includes:1X HolderMaterial Type : ABSItem Diameter : 9cmItem Weight : 350gItem Height : 9cmItem Width : 5.5cmItem Length : 9cmHope you can buy your favourite products in the shop, welcome to the next visit.

• Application: Motorcycle Digital Tachometer Odometer
• Function: Motorcycle Tachometer Tachometer Meter Whether you are driving at night or during the day, the mileage will be clearly displayed.
• Safety: Motorcycle digital Tachometer can accurately indicate your speed, improve your safety, and is very practical.
• Appearance:The motorcycle dashboard tachometer oil gauge has a delicate and soft appearance, which is safe and environmentally friendly
• Installation:Motorcycle digital odometerquick and simple to install without complicated procedures.
